From moored current meter data and repeated hydrography data,
geostrophic velocity field normal to the observation line,

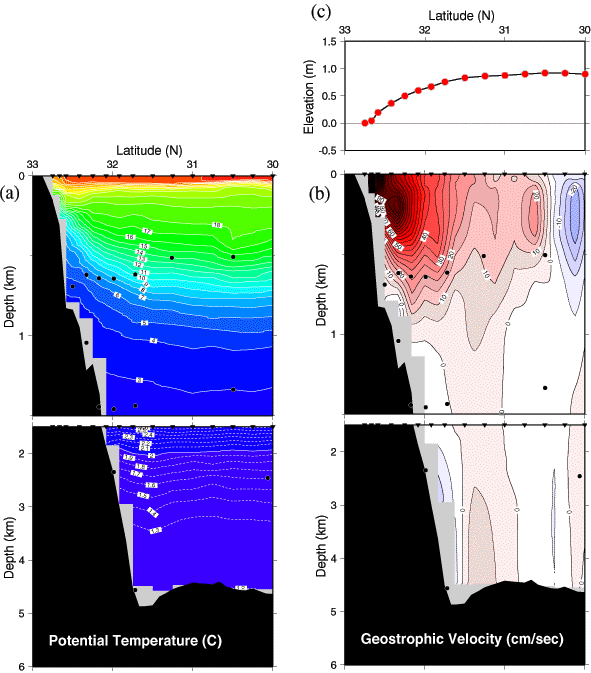

referring to velocities observed at mid and deep layers, is estimated (Fig. 3).
From the velocity field, volume transport of the Kuroshio (transport of the entire eastward flow) for the upper 1,000 m is estimated.
It varies from 27 to 85 Sv (1 Sv = 10^6 m^3/sec) for 25 selected hydrographic surveys (separated from each other by more than five days).

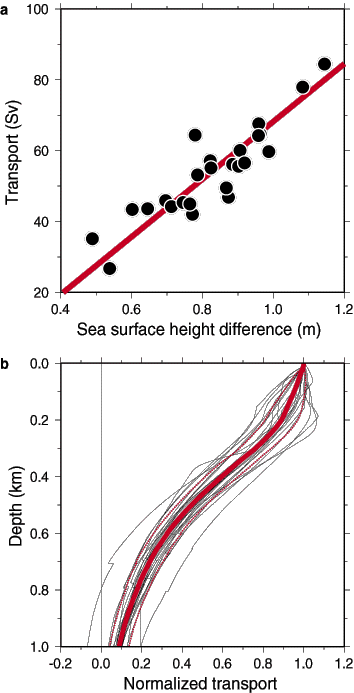

The transport is found to be proportional to the sea level difference across the Kuroshio (Fig. 4a),
which is related with the surface layer transport, assuming geostrophy.
The relationship can be understood by the fact that the vertical profile of transport per unit depth of the Kuroshio, normalized by the surface layer transport,
is almost constant in time (Fig. 4b), and therefore the total transport is proportional to the surface layer transport.
| |
