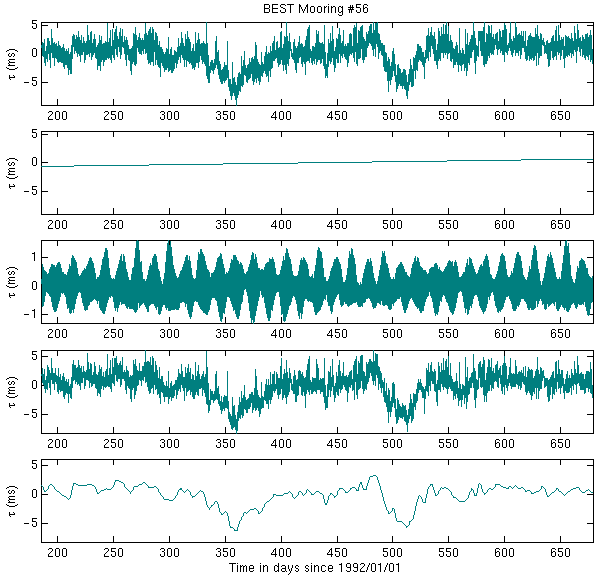

Figure 8 a,b,c,d,e.

a) Raw IES timeseries data for SN 56 (the mean has been removed for clarity). Processed data samples are once per hour.

b) A linear trend is modeled and removed.

c) The barotropic tide (diurnal and semi-diurnal) is modeled and removed. Tides in the Cape Basin have a peak-to-trough amplitude of roughly 2 m, which translates to an amplitude of about 2.5 ms in tau (acoustic travel time). Note the change in scale on the y-axis.

d) The de-trended, de-tided data.

e) A lowpass filter is applied: in this case a second-order Butterworth filter with a cutoff at 40 hours.
